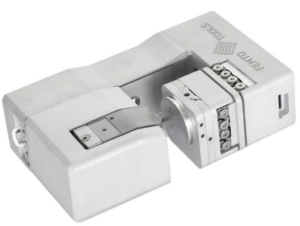

In-situ Nanoindenter- FT-NMT04

This intrinsically displacement controlled in-situ Nanoindenter can perform mechanical testing in a SEM. Due to the additional Heating stage it can perform tests at 600°C.

Operationsmodi:

• Nanoindentierung with Berkovich-, Cube Corner- or spherical geometry
• Micropillar Compression
• Micro-Tensil Testing
• Fatigue Testing
• Microcantilever Fracture Testing
• Manipulation of Structures
• Scratch-Testing

Specifications:

• max Force 200 mN
• max. Displacement: 25 µm
• Depth resolution >0.05 nm
• Force resulution >0.5 nN
• Positioning resolution 1 nm
• max. CSM Frequency 500 Hz
• max. measuring frequency 96 kHz
